GTM MOTORSPORTS VQ35DE TWIN TURBO TURN KEY KIT
$6,810.00
Availability: Out of stock
GTM MOTORSPORTS VQ35DE TWIN TURBO TURN KEY KIT

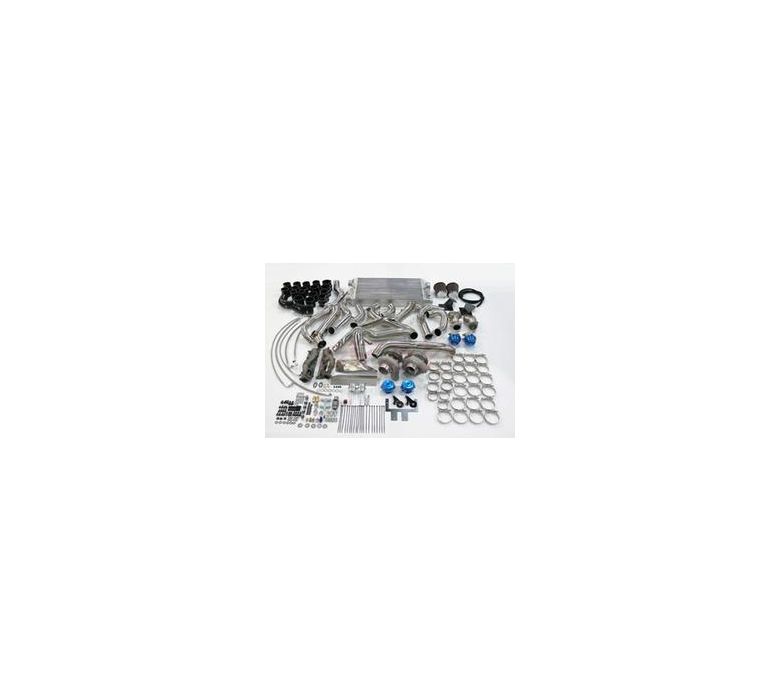

GTM Motorsports VQ35DE Twin Turbo Turn Key Kit
We are very proud to introduce the GTM product line of turbo kits for the VQ platform VQ35DE, VQ35DE-REVUP, VQ35HR AND VQ37VHR.
Below is a description of all the components of the kit :
* Cast Ductile Iron Exhaust Manifolds And Turbine Housing
* Pre-Bent Stainless Steel Heat Shields
* Exhaust Manifold Install Hardware Kit
* 4-Ply High Resistance Nomex Silicon couplers
* Stainless Steel T-Bolt clamps
* 3.5 x 13 x 24 Bar and Plate Core Intercooler Rated 1000hp
* GTM Steering Coupler
* Polished Stainless Steel and Tig Welded Piping
* Pre-made steel braided oil and coolant Supply & Return lines
* Garrett Twin ball bearing water & oil cooled turbocharger
* Cold Air Intake System (using k&n filters)
* TiAL 50mm Blow-off Valve
* HKS Internal Wastegate Actuators (standard option) with Turn key kit
* Tial 38mm external Wastegate with GTM Downpipes (standard option) with Tuner kit
* All Necessary Hardware and Installation Instructions
* GTM Custom mapped plug-in And play engine management for optimum engine tune and power
* GTM Basic fuel system with Denso 600cc Injectors and Walbro 255 Fuel Pump .
In order to further customize these kits to your individual needs and specifications several options are offered with this kit.
As a general guideline the GTM turbo stages are capable of the following performance specs:
* Stage 1 (500 HP)
* Stage 2 (700 HP)
* Stage 3 (900 HP)
* Stage 4 (1000 HP)
Understand that these are projected numbers and will vary upon dyno type, dyno conditions, tune, and level of supporting modifications.
